Turbo Parts No.:1000-970-0191,1000-970-0206,1000-970-0234,1000-970-0273,1000-970-0286,1000-970-0225,1000-970-0313,1635-970-0016,1635-970-0018,1635-970-00221635-970-0024,1635-970-0056
OE No.:03N145701C,03N145701F,03N145701K,03N145701M,03N145701L,03N145702

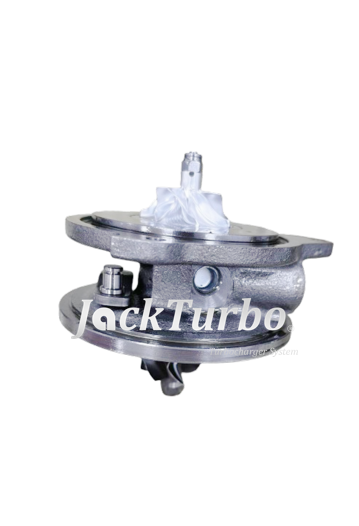

Model:B01V-R2S
Turbo Brand:BORGWARNER
Application:Volkswagen Crafter 2.0 TDI-CR 2015-2017-high power
JACK ID:2-00-1581X
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
