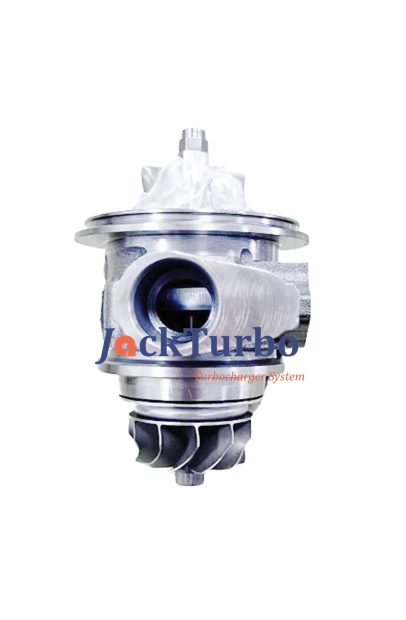

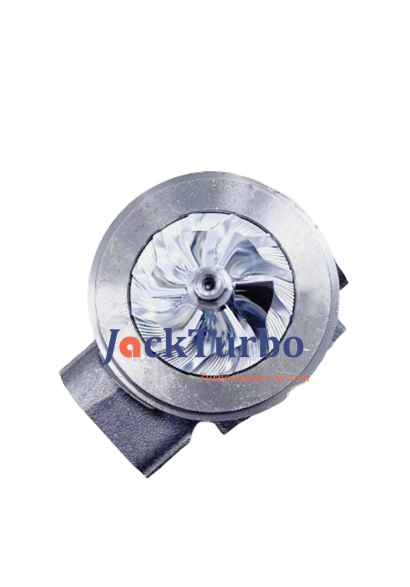

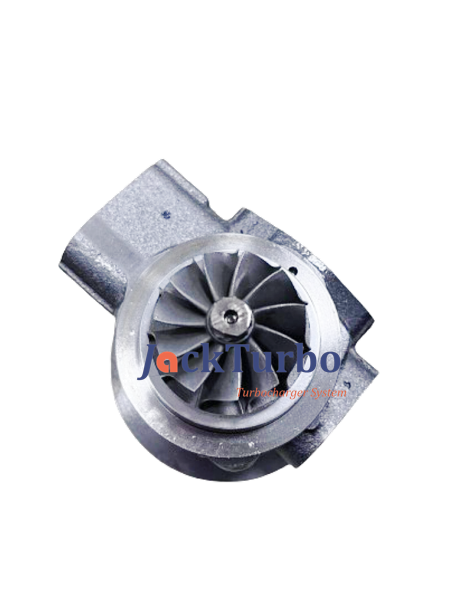

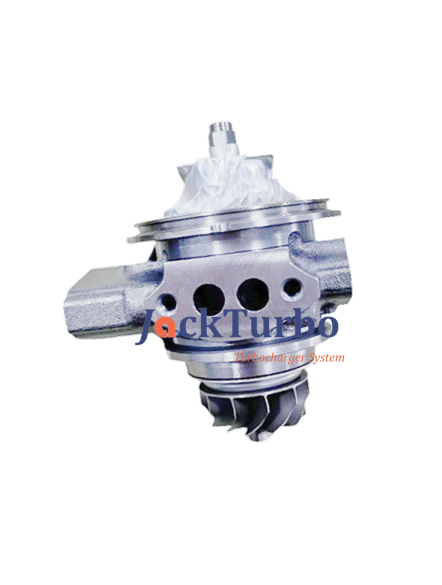

Turbo Parts No.:49180-01400, 49180-01405, 49180-01406, 49180-01420, 49180-01424, 49180-01425,
49180-01429, 49180-01430, 49180-01431, 49180-01700, 49180-08600, 49180-01406,
49180-01424, 49180-01430, 49795-97601, 49795-97301
OE No.:04E145715F, 04E145715E, 04E145721P, 04E145722G, 04E145722F, 04E145874N
Model:TD025L
Turbo Brand:MHI
Application:Volkswagen Golf/ Passat/ Tiguan/ Touran/ Lamando 1.4 TFSI EA211 Gasoline 2013
Audi A3/ Q2/ Q3 1.4 TFSI EA211 Gasoline 2013
Volkswagen Golf VII 1.4 TFSI EA211 Gasoline 2014-2017
Volkswagen Lamando 1.4 TFSI EA211 Gasoline 2014-2017
JACK ID:5-00-0977X
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
