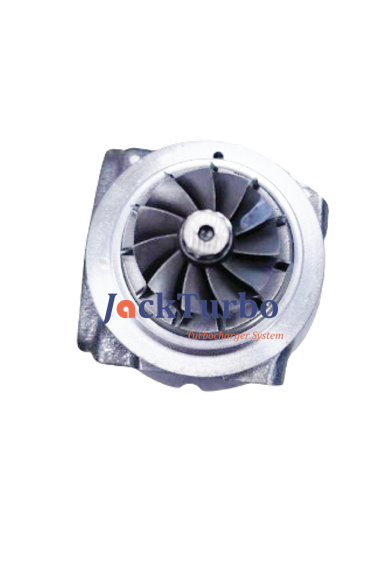

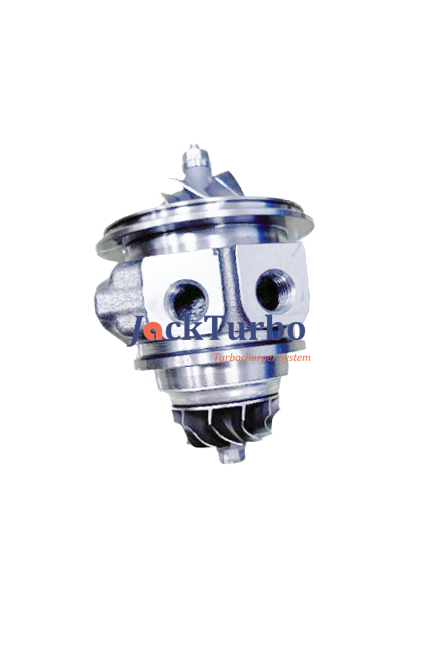

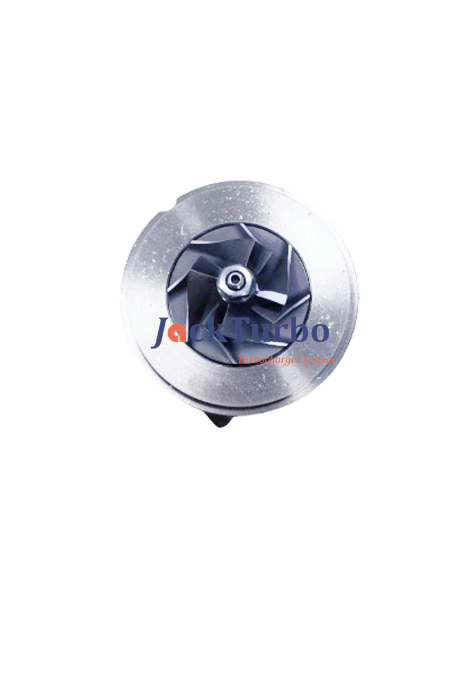

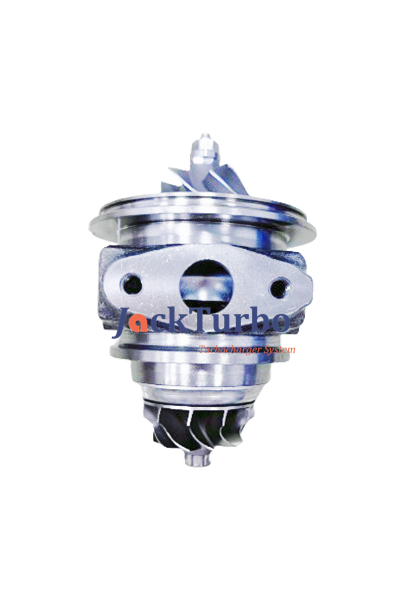

Turbo Parts No.:49373-04000, 49373-04001, 49373-04002, 49373-04003
OE No.:14410-3742R, 14410-6073R
Model:TD02H2-04TVT-2.3
Turbo Brand:MHI
Application:Renault Dacia Sandero II H4Bt 400 2013
Renault Captur 0.9 TCe 90 H4Bt 400 2013
JACK ID:5-00-1274A
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
