Turbo Parts No.:173364, 1270-988-0201, 173922, 177260, 477260, 177259, 173290, 173288, 477259, 173435, 477261, 177261, 172088, 172534, 172085, 172536, 179555, 177257, 173354, 173407, 173588, 173753, 173754, 173921, 174176
OE No.:RE516963, RE516667, RE516700, SE502161, RE516669, RE516938, RE508657, RE509829, RE508693, RE509828, RE548763, SE501669, RE520650

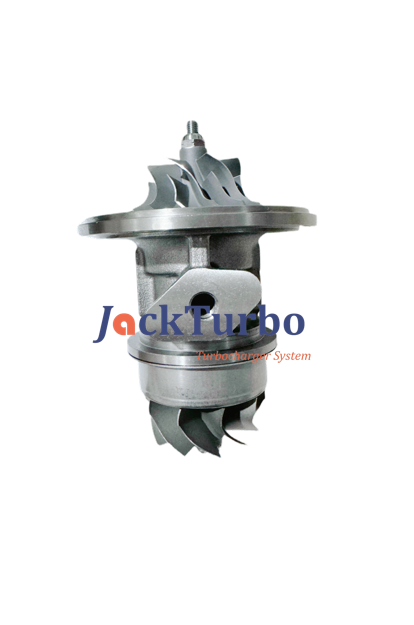

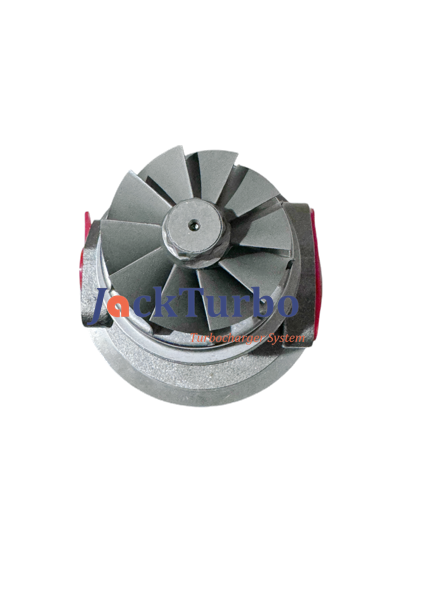

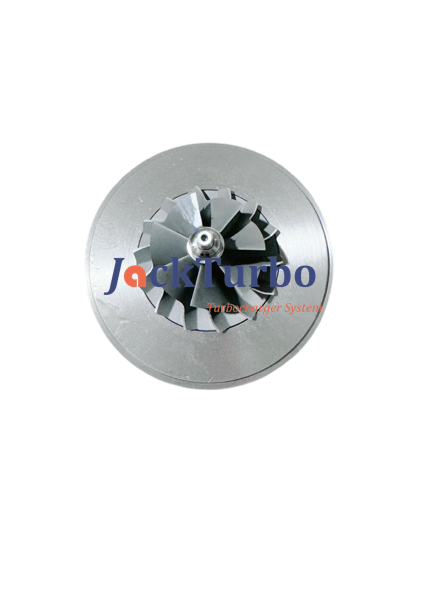

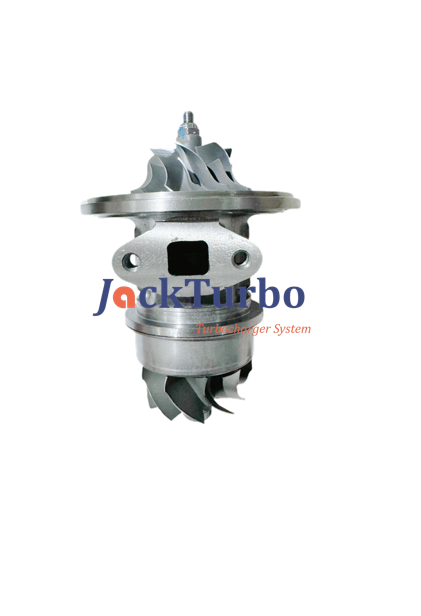

Turbo Model:S200-053
Turbo Brand:SCHWITZER
Car Application:2002-08 John Deere Uniport Engine 6068H / 7195J / 7200J / 7210J / 7215J / 7225J / 7230J / Agricultural 6068T | 6068H
JACK ID:4-00-1529
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
