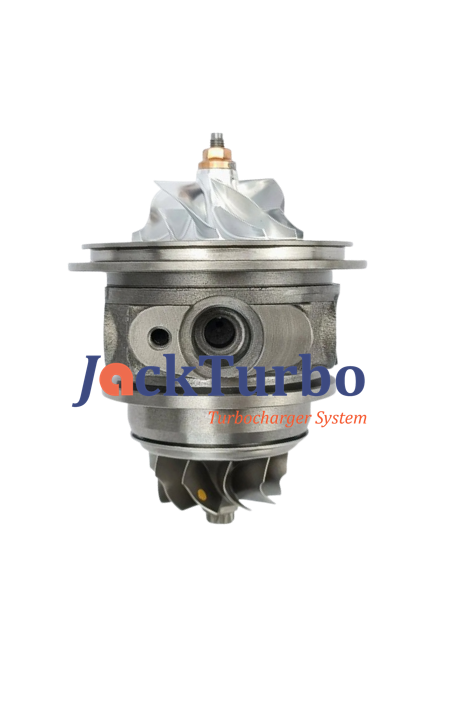

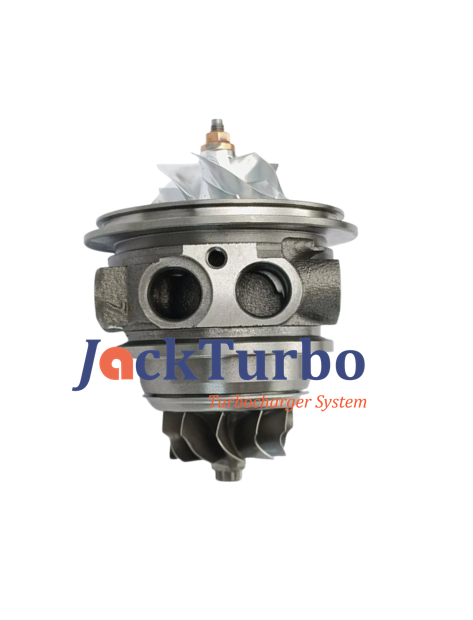

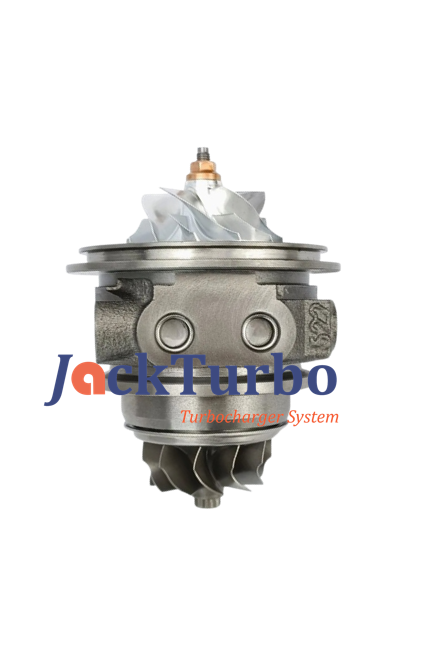

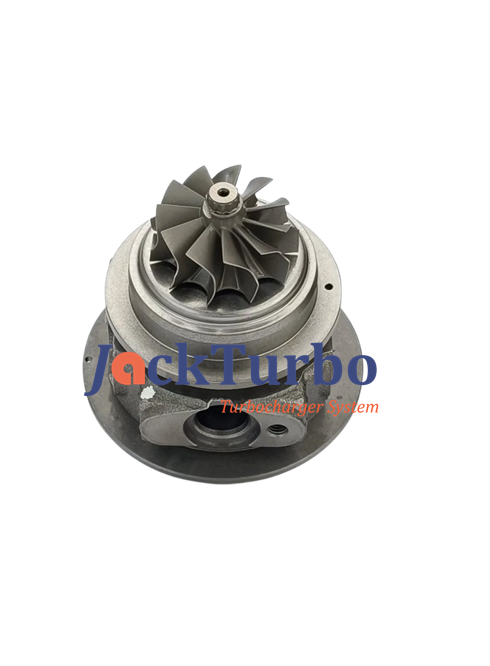

Turbo Parts No.: 49335-02000, 49335-02001, 49335-02002, 49335-02003, 49335-02004, 49335-02005, 49335-02050, 49335-02051, 49335-02052, 49335-02053, 49335-02054, 49335-02055
OE No.:11657849650, 11657849651, 11657850278, 7850279, 11657850279
Turbo Model:TF035HL4W- 11HE1TF-6.0
Turbo Brand:MHI
Car Application:BMW M2 M3 M4 3.0 (F82 / F83) S55B30 2014-2018
JACK ID:5-00-1740X
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
