Turbo Parts No.:06K145702H;06K145702HX;06K145702J;06K145702JX;06K145702M;06K145702MX;06K145702N;06K145702NX;06K145722P;06K145722PX;06K145722T;06K145722TX;06K145874F;06K145874FX;06K145722A;06K145722AX;06K145722H;06K145722HX;06K145874N;06K145874NX
OE No.:IS38;9VA04

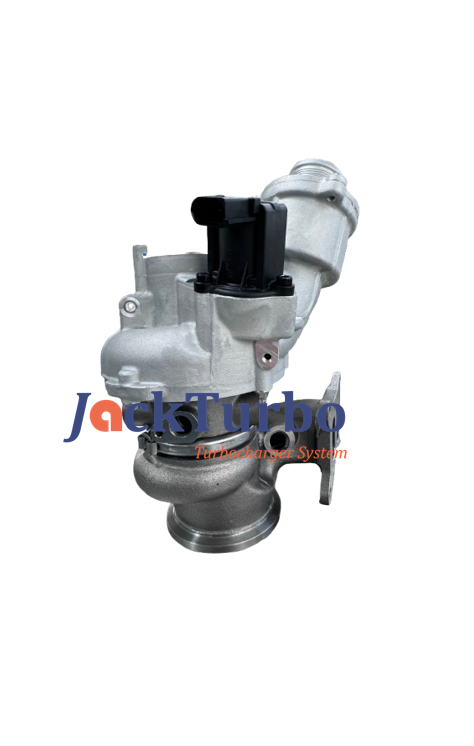

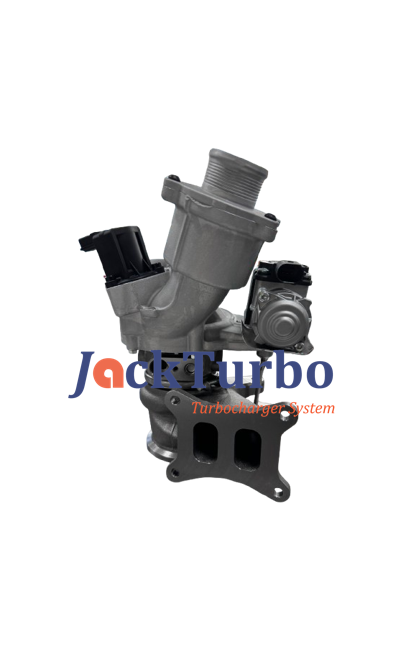

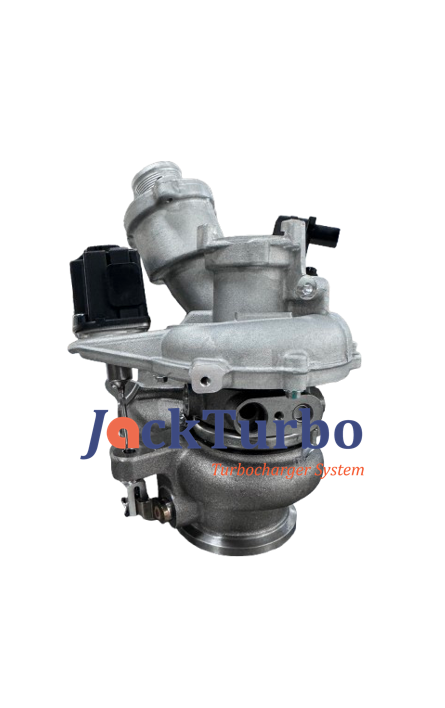

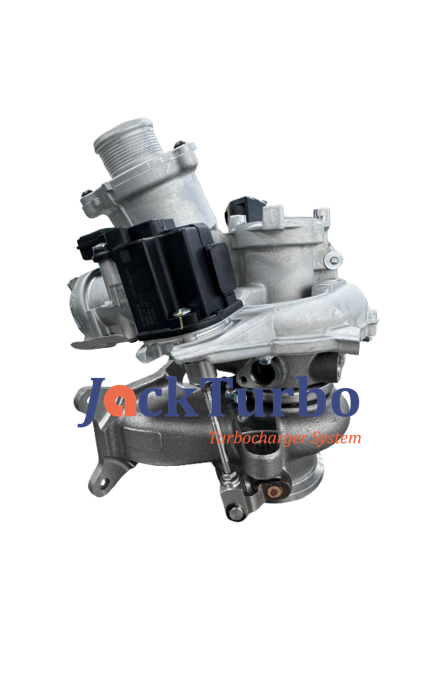

Turbo Model:JH5-IS38
Turbo Brand:IHI
Car Application:Audi A3/TT CJXA,CJXB,CJXF 2.0LP 2013-2020 VW Passat B8/Golf VII CJXA,CJXB,CJXF 2.0LP 2013-2020 SEAT Leon CJXA,CJXB,CJXF 2.0LP 2013-2020
JACK ID:J60JH5-364
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
