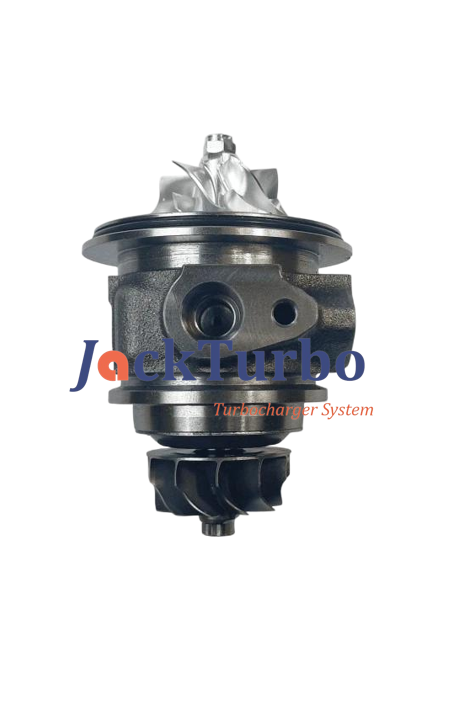

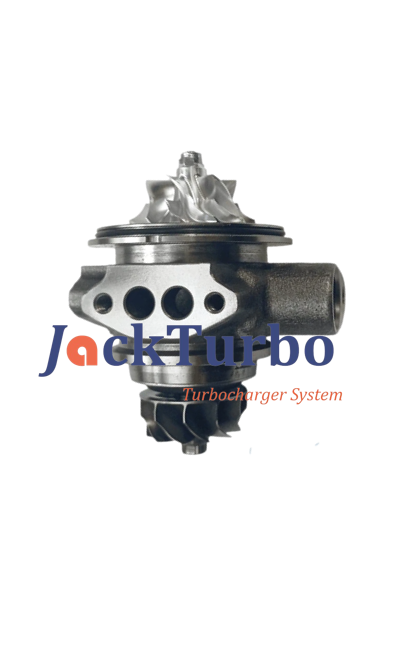

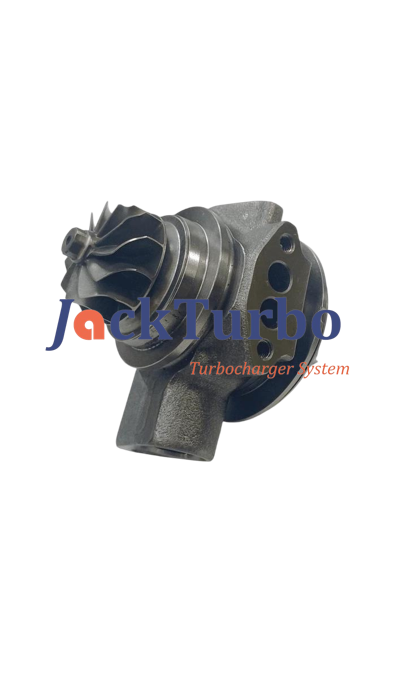

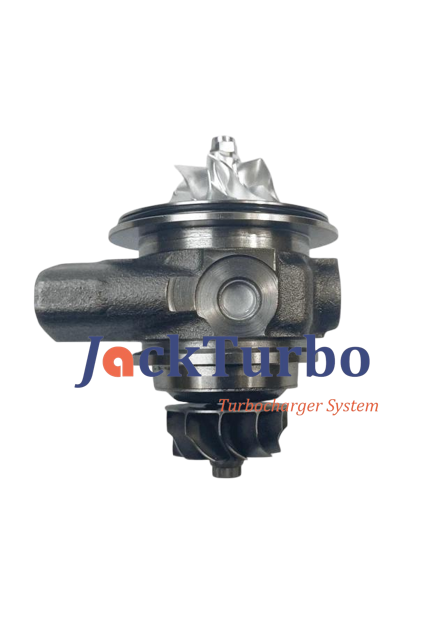

Turbo Parts No.:49180-01500, 49180-01510, 49180-01515, 49180-01520
OE No.:04E145722H, 04E145715K, 04E145715J
Turbo Model:TD025L4b
Turbo Brand:MHI
Car Application:Audi A4 1.4 TFSI CVN, CVNA / Petrol, Gas / 1395 ccm, 1.4 litres / 110kW 2016-
JACK ID:5-00-1739X
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
