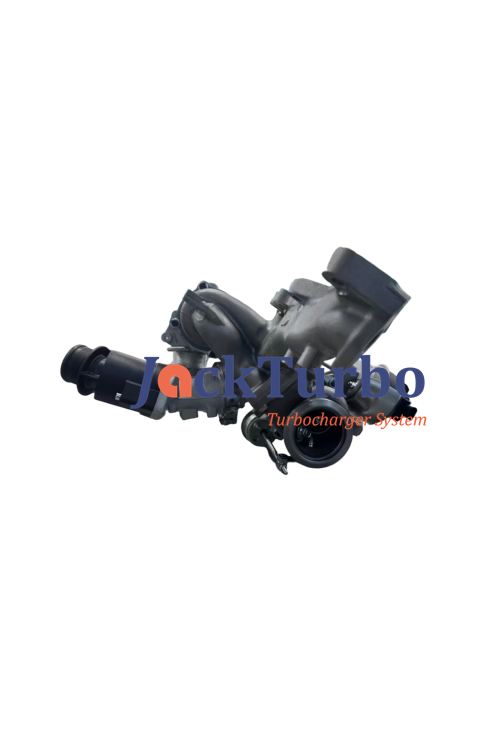

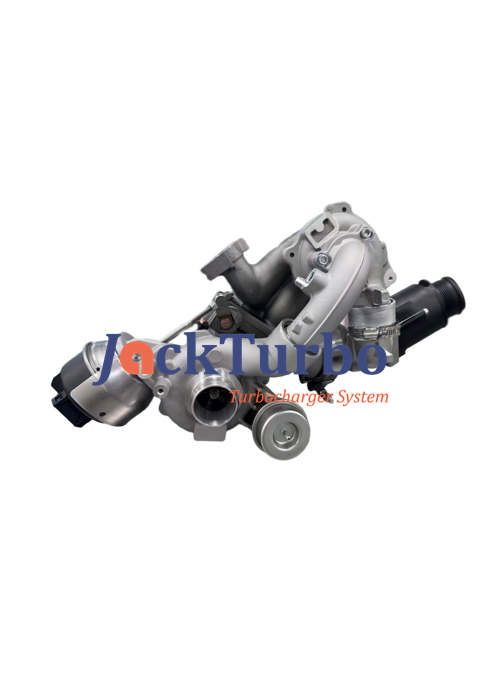

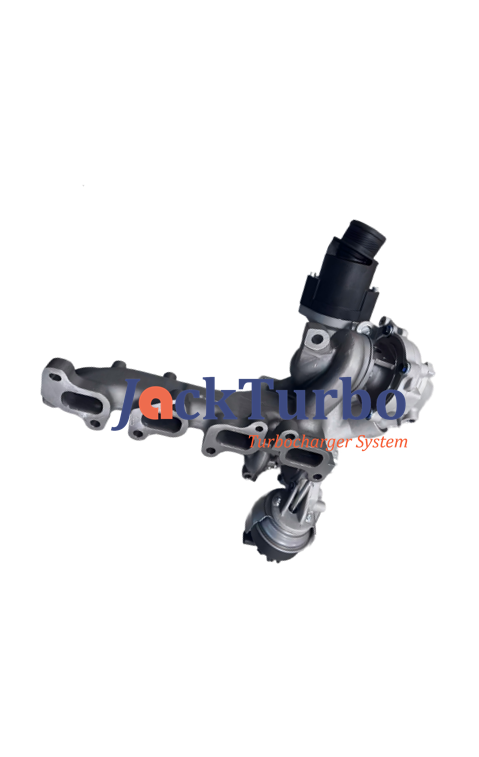

Turbo Parts No.:1000-988-0102;1000-970-0026;1000-970-0029;1000-988-0029;1000-970-0052;1000-970-0065;1000-988-0065;1000-970-0066;1000-970-0102;1000-988-0102
OE No.:03L145715A
Turbo Model:R2S KP35+K04
Turbo Brand:KKK
Car Application:Volkswagen Amarok CDCA 2.0LD 2010-2012
JACK ID:J20R2S-325
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
