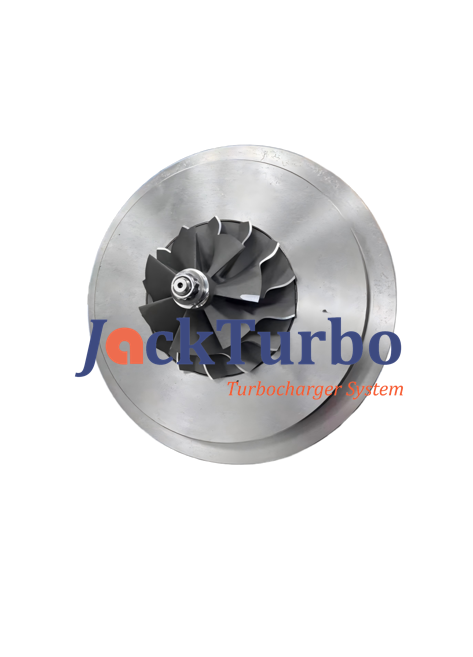

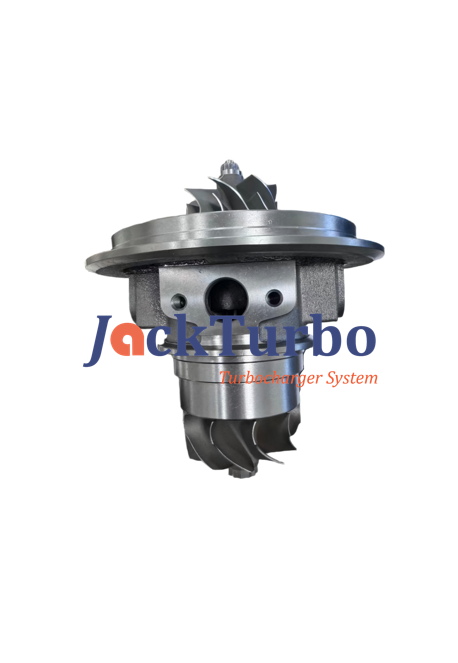

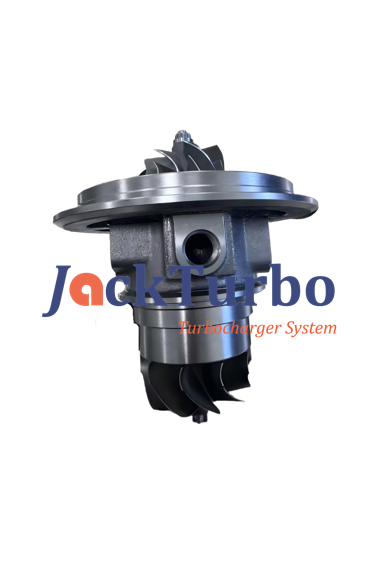

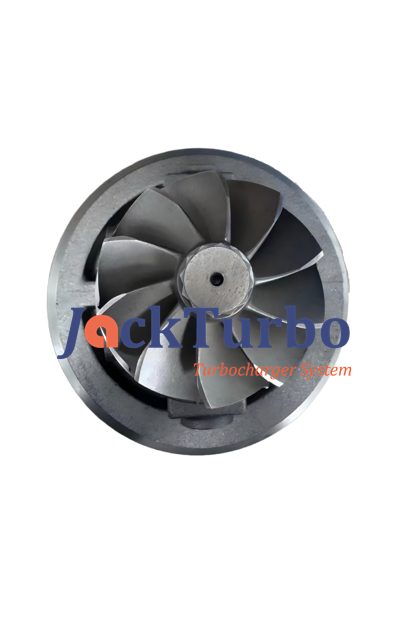

Turbo Parts No.:175210, 475210, 1380-988-0113
OE No.:10R2359,249-5202, 10R2355,248-5246, 250-7700, 10R-2969, 10R-2858
Turbo Model:S310
Turbo Brand:SCHWITZER
Car Application:Caterpillar Industrial C9 2004-2005 Caterpillar 330D LHP C9 2005
JACK ID:4-00-1395B
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
